Remote Control

Remote Control provides a framework to allow apps to control certain safe modules within a vehicle.

Note

Not all vehicles have this functionality. Even if they support remote control, you will likely need to request permission from the vehicle manufacturer to use it.

Why is this helpful?

Consider the following scenarios:

  • A radio application wants to use the in-vehicle radio tuner. It needs the functionality to select the radio band (AM/FM/XM/HD/DAB), tune the radio frequency or change the radio station, as well as obtain general radio information for decision making.

  • A climate control application needs to turn on the AC, control the air circulation mode, change the fan speed and set the desired cabin temperature.

  • A user profile application wants to remember users' favorite settings and apply it later automatically when the users get into the same/another vehicle.

Currently, the Remote Control feature supports these modules:

Supported RC Modules
Climate
Radio
Seat
Audio
Light
HMI Settings

The following table lists what control items are in each control module.

RC Module Control Item Value Range Type Comments
Climate Current Cabin Temperature Get/Notification read only, value range depends on OEM
Desired Cabin Temperature Get/Set/Notification value range depends on OEM
AC Setting on, off Get/Set/Notification
AC MAX Setting on, off Get/Set/Notification
Air Recirculation Setting on, off Get/Set/Notification
Auto AC Mode Setting on, off Get/Set/Notification
Defrost Zone Setting front, rear, all, none Get/Set/Notification
Dual Mode Setting on, off Get/Set/Notification
Fan Speed Setting 0%-100% Get/Set/Notification
Ventilation Mode Setting upper, lower, both, none Get/Set/Notification
Radio Radio Enabled true,false Get/Set/Notification read only, all other radio control items need radio enabled to work
Radio Band AM,FM,XM Get/Set/Notification
Radio Frequency Get/Set/Notification value range depends on band
Radio RDS Data Get/Notification read only
Available HD Channel 1-3 Get/Notification read only
Current HD Channel 1-3 Get/Set/Notification
Radio Signal Strength Get/Notification read only
Signal Change Threshold Get/Notification read only
Radio State Acquiring, acquired, multicast, not_found Get/Notification read only

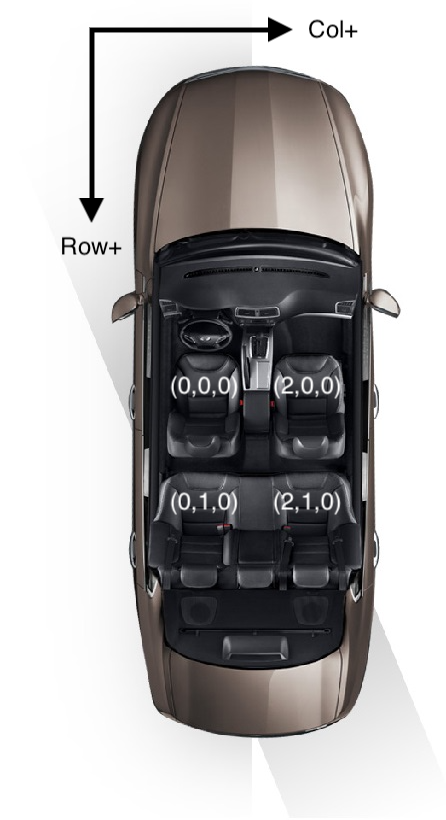

Seat Seat Heating Enabled true, false Get/Set/Notification Indicates whether heating is enabled for a seat
Seat Cooling Enabled true, false Get/Set/Notification Indicates whether cooling is enabled for a seat
Seat Heating level 0-100% Get/Set/Notification Level of the seat heating
Seat Cooling level 0-100% Get/Set/Notification Level of the seat cooling
Seat Horizontal Positon 0-100% Get/Set/Notification Adjust a seat forward/backward, 0 means the nearest position to the steering wheel, 100% means the furthest position from the steering wheel
Seat Vertical Position 0-100% Get/Set/Notification Adjust seat height (up or down) in case there is only one actuator for seat height, 0 means the lowest position, 100% means the highest position
Seat-Front Vertical Position 0-100% Get/Set/Notification Adjust seat front height (in case there are two actuators for seat height), 0 means the lowest position, 100% means the highest position
Seat-Back Vertical Position 0-100% Get/Set/Notification Adjust seat back height (in case there are two actuators for seat height), 0 means the lowest position, 100% means the highest position
Seat Back Tilt Angle 0-100% Get/Set/Notification Backrest recline, 0 means the angle that back top is nearest to the steering wheel, 100% means the angle that back top is furthest from the steering wheel
Head Support Horizontal Positon 0-100% Get/Set/Notification Adjust head support forward/backward, 0 means the nearest position to the front, 100% means the furthest position from the front
Head Support Vertical Position 0-100% Get/Set/Notification Adjust head support height (up or down), 0 means the lowest position, 100% means the highest position
Seat Massaging Enabled true, false Get/Set/Notification Indicates whether massage is enabled for a seat
Massage Mode List of Struct {MassageZone, MassageMode} Get/Set/Notification list of massage mode of each zone
Massage Cushion Firmness List of Struct {Cushion, 0-100%} Get/Set/Notification list of firmness of each massage cushion
Seat memory Struct{ id, label, action (SAVE/RESTORE/NONE)} Get/Set/Notification seat memory
Audio Audio volume 0%-100% Get/Set/Notification The audio source volume level
Audio Source MOBILE_APP, RADIO_TUNER, CD, BLUETOOTH, USB, etc. see PrimaryAudioSource Get/Set/Notification defines one of the available audio sources
keep Context true, false Set only control whether HMI shall keep current application context or switch to default media UI/APP associated with the audio source
Equilizer Settings Struct {Channel ID as integer, Channel setting as 0%-100%} Get/Set/Notification Defines the list of supported channels (band) and their current/desired settings on HMI
Light Light Status ON, OFF Get/Set/Notification turn on/off a single light or all lights in a group
Light Density float 0.0-1.0 Get/Set/Notification change the density/dim a single light or all lights in a group
Light Color RGB color Get/Set/Notification change the color scheme of a single light or all lights in a group
HMI Settings Display Mode DAY, NIGHT, AUTO Get/Set/Notification Current display mode of the HMI display
Distance Unit MILES, KILOMETERS Get/Set/Notification Distance Unit used in the HMI (for maps/tracking distances)
Temperature Unit FAHRENHEIT, CELSIUS Get/Set/Notification Temperature Unit used in the HMI (for temperature measuring systems)

Remote Control can also allow mobile applications to send simulated button press events for the following common buttons in the vehicle.

The system shall list all available buttons for Remote Control in the RemoteControlCapabilities. The capability object will have a List of ButtonCapabilities that can be obtained using .buttonCapabilities.

RC Module Control Button
Climate AC
AC MAX
RECIRCULATE
FAN UP
FAN DOWN
TEMPERATURE UP
TEMPERATURE DOWN
DEFROST
DEFROST REAR
DEFROST MAX
UPPER VENT
LOWER VENT
Radio VOLUME UP
VOLUME DOWN
EJECT
SOURCE
SHUFFLE
REPEAT

Integration

Note

For Remote Control to work, the head unit must support SDL Core Version 4.4 or newer. Also your app's appHMIType should be set to REMOTE_CONTROL.

System Capability

Must

Prior to using any Remote Control RPCs, you must check that the head unit has the Remote Control capability. As you may encounter head units that do not support it, this check is important.

To check for this capability, use the following call:

Objective-C
[self.sdlManager.systemCapabilityManager updateCapabilityType:SDLSystemCapabilityTypeRemoteControl completionHandler:^(NSError * _Nullable error, SDLSystemCapabilityManager * _Nonnull systemCapabilityManager) {
    if (systemCapabilityManager.remoteControlCapability == nil || error != nil) {
        // Remote control is not supported or capability could not be retrieved
        return;
    }

    SDLRemoteControlCapabilities *capabilities = systemCapabilityManager.remoteControlCapability;
    <#Code#>
}];
Swift
sdlManager.systemCapabilityManager.updateCapabilityType(.remoteControl) { (error, systemCapabilityManager) in
    if systemCapabilityManager.remoteControlCapability == nil || error != nil {
        // Remote control is not supported or capability could not be retrieved
        return
    }

    let capabilities = systemCapabilityManager.remoteControlCapability;
    <#Code#>
}

Getting Data

It is possible to retrieve current data relating to these Remote Control modules. The data could be used to store the settings prior to setting them, saving user preferences, etc. Following the check on the system's capability to support Remote Control, we can actually retrieve the data. The following is an example of getting data about the RADIO module. It also subscribes to updates to radio data, which will be discussed later on in this guide.

Objective-C
SDLGetInteriorVehicleData *getInteriorVehicleData = [[SDLGetInteriorVehicleData alloc] initAndSubscribeToModuleType:SDLModuleTypeRadio];
[self.sdlManager sendRequest:getInteriorVehicleData withResponseHandler:^(__kindof SDLRPCRequest * _Nullable request, __kindof SDLRPCResponse * _Nullable response, NSError * _Nullable error) {
    SDLGetInteriorVehicleDataResponse *dataResponse = (SDLGetInteriorVehicleDataResponse *)response;
    // This can now be used to retrieve data
    <#Code#>
}];
Swift
let getInteriorVehicleData = SDLGetInteriorVehicleData(andSubscribeToModuleType: .radio)
sdlManager.send(request: getInteriorVehicleData) { (req, res, err) in
    guard let response = res as? SDLGetInteriorVehicleDataResponse else { return }
    // This can now be used to retrieve data
    <#Code#>
}

Setting Data

Of course, the ability to set these modules is the point of Remote Control. Setting data is similar to getting it. Below is an example of setting ClimateControlData.

Objective-C
SDLTemperature *temperature = [[SDLTemperature alloc] initWithUnit:SDLTemperatureUnitFahrenheit value:74.1];
SDLClimateControlData *climateControlData = [[SDLClimateControlData alloc] initWithFanSpeed:@2 desiredTemperature:temperature acEnable:@YES circulateAirEnable:@NO autoModeEnable:@NO defrostZone:nil dualModeEnable:@NO acMaxEnable:@NO ventilationMode:SDLVentilationModeLower heatedSteeringWheelEnable:@YES heatedWindshieldEnable:@YES heatedRearWindowEnable:@YES heatedMirrorsEnable:@NO];
SDLModuleData *moduleData = [[SDLModuleData alloc] initWithClimateControlData:climateControlData];
SDLSetInteriorVehicleData *setInteriorVehicleData = [[SDLSetInteriorVehicleData alloc] initWithModuleData:moduleData];
[self.sdlManager sendRequest:setInteriorVehicleData];
Swift
let temperature = SDLTemperature(unit: .fahrenheit, value: 74.1)
let climateControlData = SDLClimateControlData(fanSpeed: 2, desiredTemperature: temperature, acEnable: true, circulateAirEnable: false, autoModeEnable: false, defrostZone: nil, dualModeEnable: false, acMaxEnable: false, ventilationMode: .lower, heatedSteeringWheelEnable: true, heatedWindshieldEnable: true, heatedRearWindowEnable: true, heatedMirrorsEnable: false)
let moduleData = SDLModuleData(climateControlData: climateControlData)
let setInteriorVehicleData = SDLSetInteriorVehicleData(moduleData: moduleData)

sdlManager.send(setInteriorVehicleData)

It is likely that you will not need to set all the data as it is in the example, so if there are settings you don't wish to modify, then you don't have to.

Button Presses

Another unique feature of Remote Control is the ability to send simulated button presses to the associated modules, imitating a button press on the hardware itself.

Simply specify the module, the button, and the type of press you would like:

Objective-C
SDLButtonPress *buttonPress = [[SDLButtonPress alloc] initWithButtonName:SDLButtonNameEject moduleType:SDLModuleTypeRadio];
buttonPress.buttonPressMode = SDLButtonPressModeShort;

[self.sdlManager sendRequest:buttonPress];
Swift
let buttonPress = SDLButtonPress(buttonName: .eject, moduleType: .radio)
buttonPress.buttonPressMode = .short

sdlManager.send(buttonPress)

Subscribing to changes

It is also possible to subscribe to changes in data associated with supported modules.

To do so, during your GET request for data, simply add in .subscribe = @YES. To unsubscribe, send the request again with the boolean set to .subscribe = @NO.

The response to a subscription will come in a form of a notification. You can receive this notification by adding a notification listener for OnInteriorVehicleData.

Objective-C
[NSNotificationCenter.defaultCenter addObserverForName:SDLDidReceiveInteriorVehicleDataNotification object:nil queue:NSOperationQueue.mainQueue usingBlock:^(NSNotification * _Nonnull note) {
    SDLRPCNotificationNotification *dataNotification = (SDLRPCNotificationNotification *)note;
    SDLOnInteriorVehicleData *onInteriorVehicleData = (SDLOnInteriorVehicleData *)dataNotification.notification;
    if (onInteriorVehicleData == nil) { return; }

    // This block will now be called whenever vehicle data changes
    // NOTE: If you subscibe to multiple modules, all the data will be sent here. You will have to split it out based on `onInteriorVehicleData.moduleData.moduleType` yourself.
    <#Code#>
}];

SDLGetInteriorVehicleData *getInteriorVehicleData = [[SDLGetInteriorVehicleData alloc] initAndSubscribeToModuleType:SDLModuleTypeRadio];
[self.sdlManager sendRequest:getInteriorVehicleData withResponseHandler:^(__kindof SDLRPCRequest * _Nullable request, __kindof SDLRPCResponse * _Nullable response, NSError * _Nullable error) {
    SDLGetInteriorVehicleDataResponse *dataResponse = (SDLGetInteriorVehicleDataResponse *)response;
    // This can now be used to retrieve data
    <#Code#>
}];
Swift
NotificationCenter.default.addObserver(forName: .SDLDidReceiveInteriorVehicleData, object: nil, queue: OperationQueue.main) { (notification) in
    guard let dataNotification = notification as? SDLRPCNotificationNotification,
        let onInteriorVehicleData = dataNotification.notification as? SDLOnInteriorVehicleData else { return }
    // This block will now be called whenever vehicle data changes
    // NOTE: If you subscibe to multiple modules, all the data will be sent here. You will have to split it out based on `onInteriorVehicleData.moduleData.moduleType` yourself.
    <#Code#>
}

let getInteriorVehicleData = SDLGetInteriorVehicleData(andSubscribeToModuleType: .radio)
sdlManager.send(request: getInteriorVehicleData) { (req, res, err) in
    guard let response = res as? SDLGetInteriorVehicleDataResponse else { return }
    // This can now be used to retrieve initialData data
    <#Code#>
}
Note

The notification listener should be added before sending the GetInteriorVehicleData request.
