Documentation
Popup Menus

Popup Menus

SDL supports modal menus. The user can respond to the list of menu options via touch, voice (if voice recognition is supported by the head unit), or by keyboard input to search or filter the menu.

There are several UX considerations to take into account when designing your menus. The main menu should not be updated often and should act as navigation for your app. Popup menus should be used to present a selection of options to your user.

Presenting a Popup Menu

Presenting a popup menu is similar to presenting a modal view to request input from your user. It is possible to chain together menus to drill down, however, it is recommended to do so judiciously. Requesting too much input from a driver while they are driving is distracting and may result in your app being rejected by OEMs.

Layout Mode Formatting Description
Present as Icon A grid of buttons with images
Present Searchable as Icon A grid of buttons with images along with a search field in the HMI
Present as List A vertical list of text
Present Searchable as List A vertical list of text with a search field in the HMI

Creating Cells

An SDLChoiceCell is similar to a UITableViewCell without the ability to configure your own UI. We provide several properties on the SDLChoiceCell to set your data, but the layout itself is determined by the manufacturer of the head unit.

Note

On many systems, including VR commands will be exponentially slower than not including them. However, including them is necessary for a user to be able to respond to your prompt with their voice.

Objective-C
SDLChoiceCell *cell = [[SDLChoiceCell alloc] initWithText:<#(nonnull NSString *)#>];
SDLChoiceCell *fullCell = [[SDLChoiceCell alloc] initWithText:<#(nonnull NSString *)#> secondaryText:<#(nullable NSString *)#> tertiaryText:<#(nullable NSString *)#> voiceCommands:<#(nullable NSArray<NSString *> *)#> artwork:<#(nullable SDLArtwork *)#> secondaryArtwork:<#(nullable SDLArtwork *)#>];
Swift
let cell = SDLChoiceCell(text: <#String#>)
let fullCell = SDLChoiceCell(text: <#String#>, secondaryText: <#String?#>, tertiaryText: <#String?#>, voiceCommands: <#[String]?#>, artwork: <#SDLArtwork?#>, secondaryArtwork: <#SDLArtwork?#>)

Preloading Cells

If you know the content you will show in the popup menu long before the menu is shown to the user, you can "preload" those cells in order to speed up the popup menu presentation at a later time. Once you preload a cell, you can reuse it in multiple popup menus without having to send the cell content to Core again.

Objective-C
[self.sdlManager.screenManager preloadChoices:<#(nonnull NSArray<SDLChoiceCell *> *)#> withCompletionHandler:^(NSError * _Nullable error) {
    <#code#>
}];
Swift
sdlManager.screenManager.preloadChoices(<#choices: [SDLChoiceCell]#>) { (error) in
    <#code#>
}

Presenting a Menu

To show a popup menu to the user, you must present the menu. If some or all of the cells in the menu have not yet been preloaded, calling the present API will preload the cells and then present the menu once all the cells have been uploaded. Calling present without preloading the cells can take longer than if the cells were preloaded earlier in the app's lifecycle especially if your cell has voice commands. Subsequent menu presentations using the same cells will be faster because the library will reuse those cells (unless you have deleted them).

SYNC 3 - List Only Interaction Layout

SYNC 3 - Icon Only Interaction Layout

Note

When you preload a cell, you do not need to maintain a reference to it. If you reuse a cell with the same properties that has already been preloaded (or previously presented), the cell will automatically be reused.

Creating a Choice Set

In order to present a menu, you must bundle together a bunch of SDLChoiceCells into an SDLChoiceSet.

Note

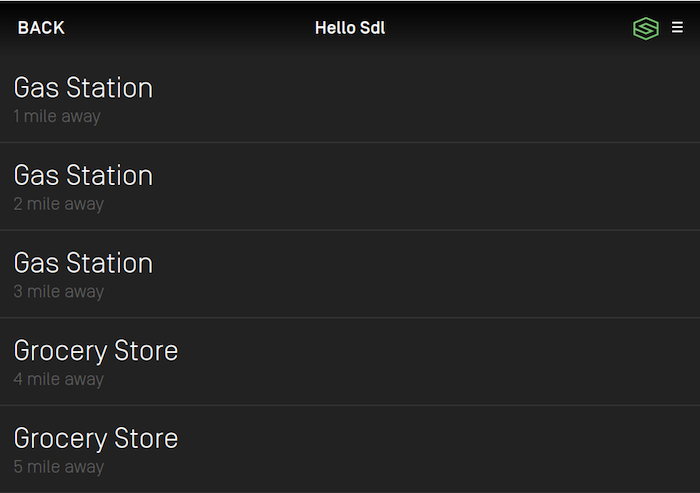

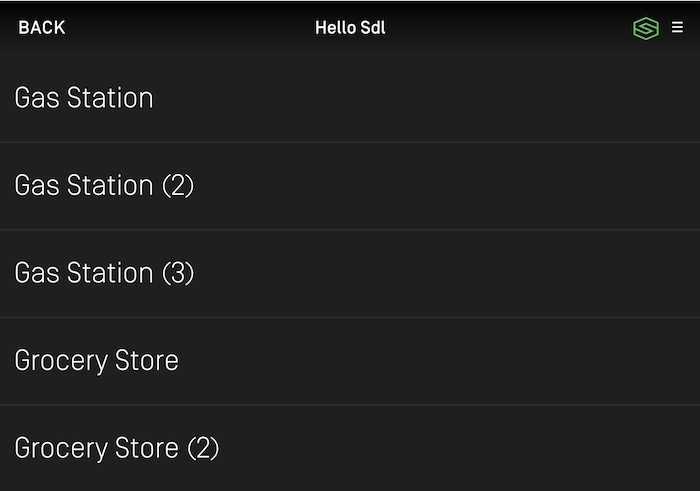

If the SDLChoiceSet contains an invalid set of SDLChoiceCells, the initializer will return nil. This can happen, for example, if you have duplicate title text or if some, but not all choices have voice commands.

Some notes on various parameters (full documentation is available as API documentation on this website):

  • Title: This is the title of the menu when presented
  • Delegate: You must implement this delegate to receive callbacks based on the user's interaction with the menu

  • Layout: You may present your menu as a set of tiles (like a UICollectionView) or a list (like a UITableView). If you are using tiles, it's recommended to use artworks on each item.

Objective-C
SDLChoiceSet *choiceSet = [[SDLChoiceSet alloc] initWithTitle:<#(nonnull NSString *)#> delegate:<#(nonnull id<SDLChoiceSetDelegate>)#> layout:<#(SDLChoiceSetLayout)#> timeout:<#(NSTimeInterval)#> initialPromptString:<#(nullable NSString *)#> timeoutPromptString:<#(nullable NSString *)#> helpPromptString:<#(nullable NSString *)#> vrHelpList:<#(nullable NSArray<SDLVRHelpItem *> *)#> choices:<#(nonnull NSArray<SDLChoiceCell *> *)#>];
Swift
let choiceSet = SDLChoiceSet(title: <#String#>, delegate: <#SDLChoiceSetDelegate#>, layout: <#SDLChoiceSetLayout#>, timeout: <#TimeInterval#>, initialPromptString: <#String?#>, timeoutPromptString: <#String?#>, helpPromptString: <#String?#>, vrHelpList: <#[SDLVRHelpItem]?#>, choices: <#[SDLChoiceCell]#>)

Implementing the Choice Set Delegate

In order to present a menu, you must implement SDLChoiceSetDelegate in order to receive the user's input. When a choice is selected, you will be passed the cell that was selected, the manner in which it was selected (voice or text), and the index of the cell in the SDLChoiceSet that was passed.

Objective-C
#pragma mark - SDLChoiceSetDelegate

- (void)choiceSet:(SDLChoiceSet *)choiceSet didSelectChoice:(SDLChoiceCell *)choice withSource:(SDLTriggerSource)source atRowIndex:(NSUInteger)rowIndex {
    <#Code#>
}

- (void)choiceSet:(SDLChoiceSet *)choiceSet didReceiveError:(NSError *)error {
    <#Code#>
}
Swift
extension <#Class Name#>: SDLChoiceSetDelegate {
    func choiceSet(_ choiceSet: SDLChoiceSet, didSelectChoice choice: SDLChoiceCell, withSource source: SDLTriggerSource, atRowIndex rowIndex: UInt) {
        <#Code#>
    }

    func choiceSet(_ choiceSet: SDLChoiceSet, didReceiveError error: Error) {
        <#Code#>
    }
}

Presenting the Menu with a Mode

Finally, you will present the menu. When you do so, you must choose a mode to present it in. If you have no vrCommands on the choice cell you should choose manualOnly. If vrCommands are available, you may choose voiceRecognitionOnly or both.

You may want to choose this based on the trigger source leading to the menu being presented. For example, if the menu was presented via the user touching the screen, you may want to use a mode of manualOnly or both, but if the menu was presented via the user speaking a voice command, you may want to use a mode of voiceRecognitionOnly or both.

It may seem that the answer is to always use both. However, remember that you must provide vrCommands on all cells to use both, which is exponentially slower than not providing vrCommands (this is especially relevant for large menus, but less important for smaller ones). Also, some head units may not provide a good user experience for both.

Interaction Mode Description
Manual only Interactions occur only through the display
VR only Interactions occur only through text-to-speech and voice recognition
Both Interactions can occur both manually or through VR

SYNC 3 - Menu - Manual Only

SYNC 3 - Menu - Voice Only

Objective-C
[self.sdlManager.screenManager presentChoiceSet:<#(nonnull SDLChoiceSet *)#> mode:<#(nonnull SDLInteractionMode)#>];
Swift
sdlManager.screenManager.present(<#choiceSet: SDLChoiceSet#>, mode: <#SDLInteractionMode#>)

Deleting Cells

You can discover cells that have been preloaded on screenManager.preloadedCells. You may then pass an array of cells to delete from the remote system. Many times this is not necessary, but if you have deleted artwork used by cells, for example, you should delete the cells as well.

Objective-C
[self.sdlManager.screenManager deleteChoices:<#(nonnull NSArray<SDLChoiceCell *> *)#>];
Swift
sdlManager.screenManager.deleteChoices(<#choices: [SDLChoiceCell]#>)

Dismissing the Popup Menu (RPC v6.0+)

You can dismiss a displayed choice set before the timeout has elapsed by sending a CancelInteraction request. If you presented the choice set using the screen manager, you can dismiss the choice set by calling cancel on the SDLChoiceCell object that you presented.

Note

If connected to older head units that do not support this feature, the cancel request will be ignored, and the choice set will persist on the screen until the timeout has elapsed or the user dismisses it by making a selection.

Objective-C
[choiceSet cancel];
Swift
choiceSet.cancel()

Using RPCs

If you don't want to use the SDLScreenManager, you can do this manually using the Choice, CreateInteractionChoiceSet. You will need to create Choices, bundle them into CreateInteractionChoiceSets. As this is no longer a recommended course of action, we will leave it to you to figure out how to manually do it.
