SubtleAlert

Type: Function
Sender: SDL
Purpose: Display a subtle notification-style alert message on the HMI

SDL sends the UI.SubtleAlert RPC when some information needs to be displayed to the user on a display in a non-intrusive way. The request includes an optional array of softButtons which the user can use to take action on the alert. The alert can also be selected directly to bring the associated application to the foreground.

Must

If the alert includes a soft button of type STEAL_FOCUS and the user presses the button, the HMI must bring the app associated with the SubtleAlert into full screen mode.
If the user selects the alert directly (without selecting one of the softbuttons), the HMI must send a UI.OnSubtleAlertPressed notification to SDL and activate the app that is associated with this SubtleAlert. The alert must then be dismissed from the HMI.
The HMI must send UI.OnSystemContext with type ALERT for the application which is in FULL mode.
Respond to the SubtleAlert earlier than SDL's default timeout of 10 seconds - applicable only to alerts without softButtons.
Display the notification dialog with the text information in the alertStrings array and optional softButtons.
Send Buttons.OnButtonPress and/or Buttons.OnButtonEvent notifications if soft buttons associated with the notification are pressed by the user.
Dismiss the alert after the duration has passed since receipt of the request and send a TIMED_OUT response to SDL.

May

The HMI may provide the user with a system defined "close" button providing the user with the possibility to dismiss the alert. In this case the HMI must still respond to the SubtleAlert request.

Note

An SubtleAlert message may be sent to the HMI for an application which is not currently active. If the alert contains softButtons then the duration should be ignored.

Request

Parameters

Name	Type	Mandatory	Additional
alertStrings	Common.TextFieldStruct	true	array: true minsize: 0 maxsize: 2
alertIcon	Common.Image	false
duration	Integer	false	minvalue: 3000 maxvalue: 10000
softButtons	Common.SoftButton	false	array: true minsize: 0 maxsize: 2
alertType	Common.AlertType	true
appID	Integer	true
cancelID	Integer	false

Response

Parameters

Name	Type	Mandatory	Additional
tryAgainTime	Integer	false	minvalue: 0 maxvalue: 2000000000

Sequence Diagrams

Sequence Diagram

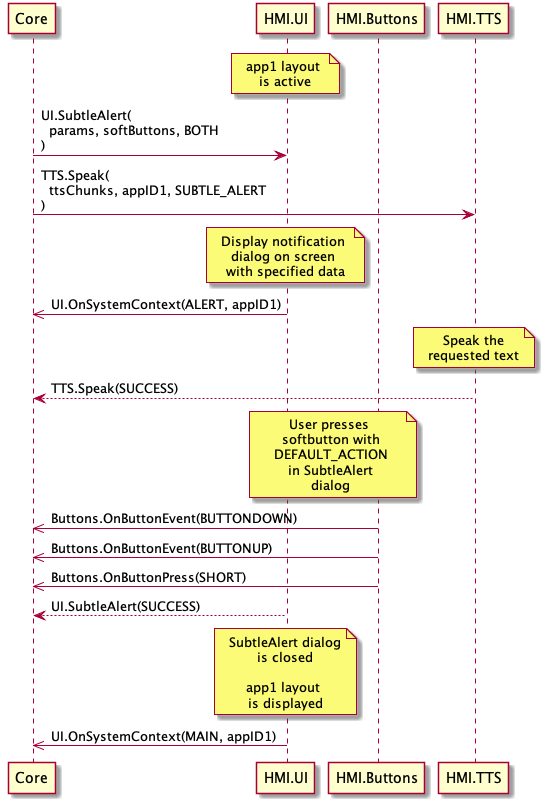

SubtleAlert closed by DEFAULT_ACTION

View Diagram

Sequence Diagram

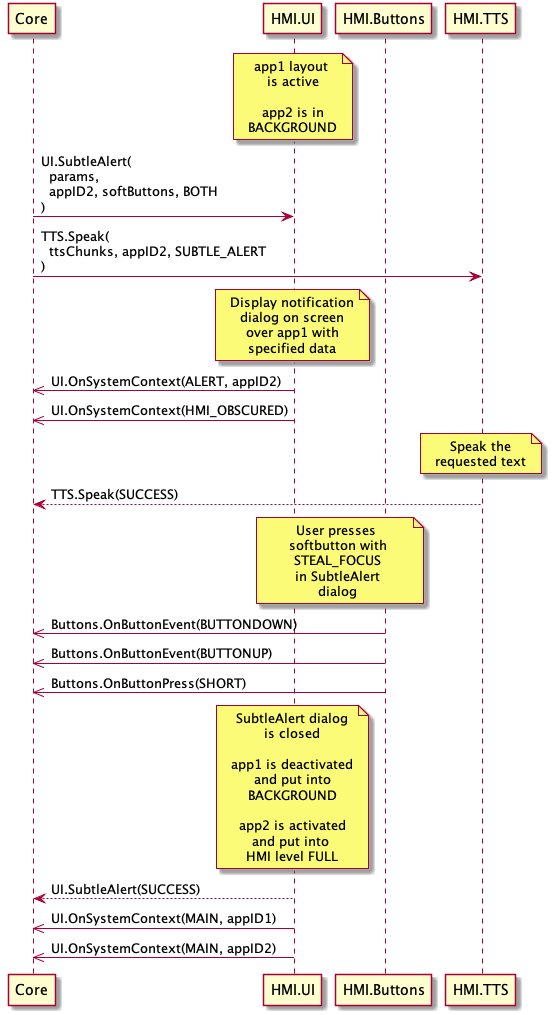

SubtleAlert closed by STEAL_FOCUS

View Diagram

Sequence Diagram

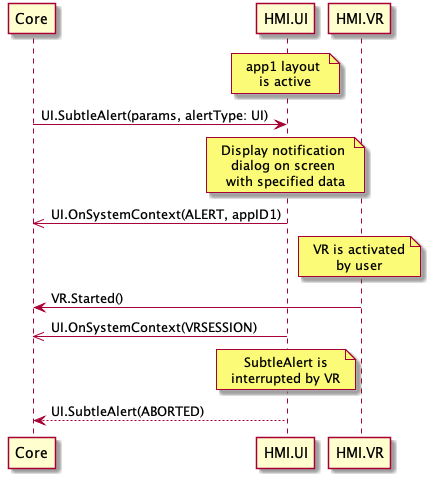

SubtleAlert Aborted by VR Session

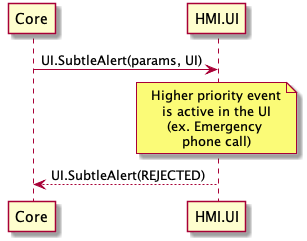

SubtleAlert Rejected

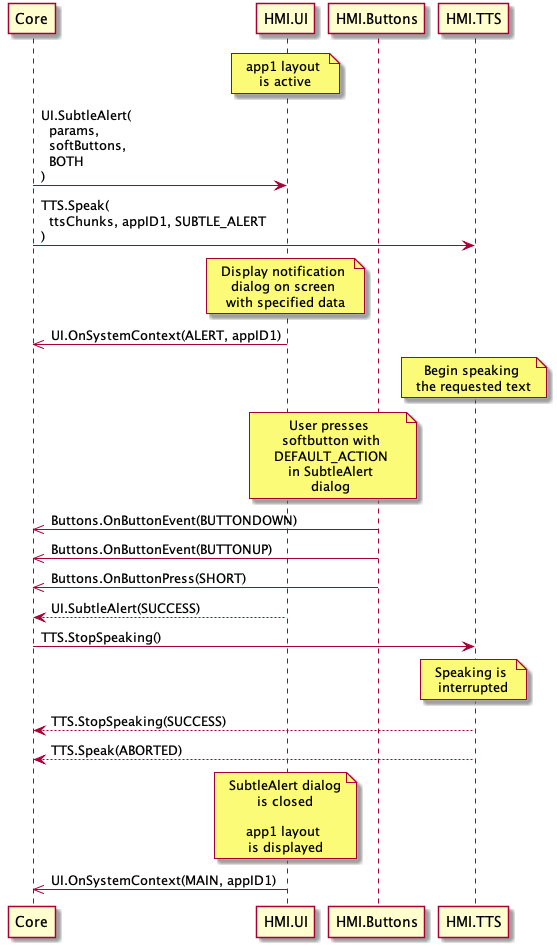

SubtleAlert BOTH UI Closed before TTS finishes Speaking

View Diagram

JSON Message Examples

Example Request

{
  "id" : 92,
  "jsonrpc" : "2.0",
  "method" : "UI.SubtleAlert",
  "params" : {
    "alertStrings" : [
      {
        "fieldName" : "subtleAlertText1",
        "fieldText" : "WARNING"
      },
      {
        "fieldName" : "subtleAlertText2",
        "fieldText" : "Hard weather conditions"
      }
    ],
    "softButtons" : [
      {
        "type" : "TEXT",
        "text" : "OK",
        "softButtonID" : 697,
        "systemAction" : "DEFAULT_ACTION"
      }
    ],
    "alertType" : "BOTH",
    "appID" : 65539,
    "cancelID" : 32123
  }
}

Example Response

{
  "id" : 92,
  "jsonrpc" : "2.0",
  "result" : {
    "code" : 0,
    "method" : "UI.SubtleAlert"
  }
}

Example Error

{
  "id" : 92,
  "jsonrpc" : "2.0",
  "error" : {
    "code" : 4,
    "message" : "The requested command was rejected.",
    "data" : {
      "tryAgainTime" : 10000,
      "method" : "UI.SubtleAlert"
    }
  }
}
