HMI Documentation
OnSystemCapabilityUpdated

OnSystemCapabilityUpdated

Type
Notification
Sender
SDL or HMI
Purpose
Inform that a specific system capability has changed

Notification

  1. HMI sends OnSystemCapabilityUpdated notification to SDL after creating a widget (see also CreateWindow).
  2. HMI sends OnSystemCapabilityUpdated notification after receiving UI.Show(templateConfiguration) request manipulating the content presented of main window or widgets.
  3. HMI should not send WEB_VIEW template in WindowCapability for any widgets, and applications with AppHMIType other than WEB_VIEW.
  4. If the application changes template to WEB_VIEW, HMI should send OnSystemCapabilityUpdated with the following textFields restrictions in WindowCapability:
    • menuName and templateTitle should be included, if they are visible on HMI.
    • mainField1-4, statusBar and mediaTrack should not be included if OEM implemented the WEB_VIEW template without these text fields.
    • availabletemplates, buttonCapabilities and imageTypeSupported should reflect the general capabilities of the window/system.
Note

Template WEB_VIEW is only allowed for the WebEngine applications with AppHMIType=WEB_VIEW.

Parameters

Name Type Mandatory Additional
systemCapability Common.SystemCapability true
appID Integer false

Sequence Diagrams

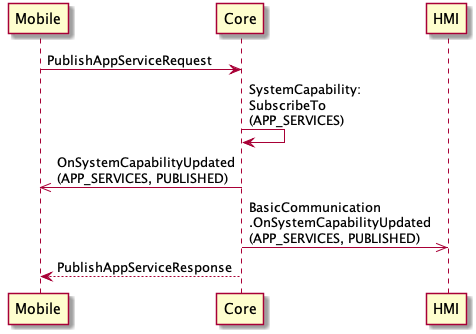

Sequence Diagram

OnSystemCapabilityUpdated(APP_SERVICES, PUBLISHED)

View Diagram

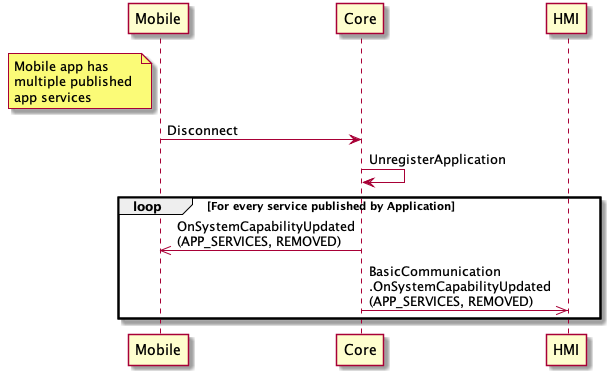

Sequence Diagram

OnSystemCapabilityUpdated(APP_SERVICES, REMOVED)

View Diagram

JSON Message Examples

Example Notification

{
  "jsonrpc": "2.0",
  "method": "BasicCommunication.OnSystemCapabilityUpdated",
  "params": {
    "systemCapability": {
      "appServicesCapabilities": {
        "appServices": [
          {
            "updatedAppServiceRecord": {
              "serviceActive": true,
              "serviceID": "c9503a4f983e3dd31a7a14564d405cdf84769c9b9a71cae9cc211a0b74e93629",
              "serviceManifest": {
                "allowAppConsumers": true,
                "rpcSpecVersion": {
                  "majorVersion": 5,
                  "minorVersion": 1,
                  "patchVersion": 0
                },
                "serviceName": "Mobile Media Service",
                "serviceType": "MEDIA"
              },
              "servicePublished": true
            }
          },
          {
            "updateReason": "PUBLISHED",
            "updatedAppServiceRecord": {
              "serviceActive": false,
              "serviceID": "d6d8d2fb2bfcc00033804fb19e9fb7d6070d2c166f49881563276f17478c39f8",
              "serviceManifest": {
                "allowAppConsumers": true,
                "rpcSpecVersion": {
                  "majorVersion": 5,
                  "minorVersion": 1,
                  "patchVersion": 0
                },
                "serviceName": "Waze Music",
                "serviceType": "MEDIA"
              },
              "servicePublished": true
            }
          }
        ]
      },
      "systemCapabilityType": "APP_SERVICES"
    }
  }
}
